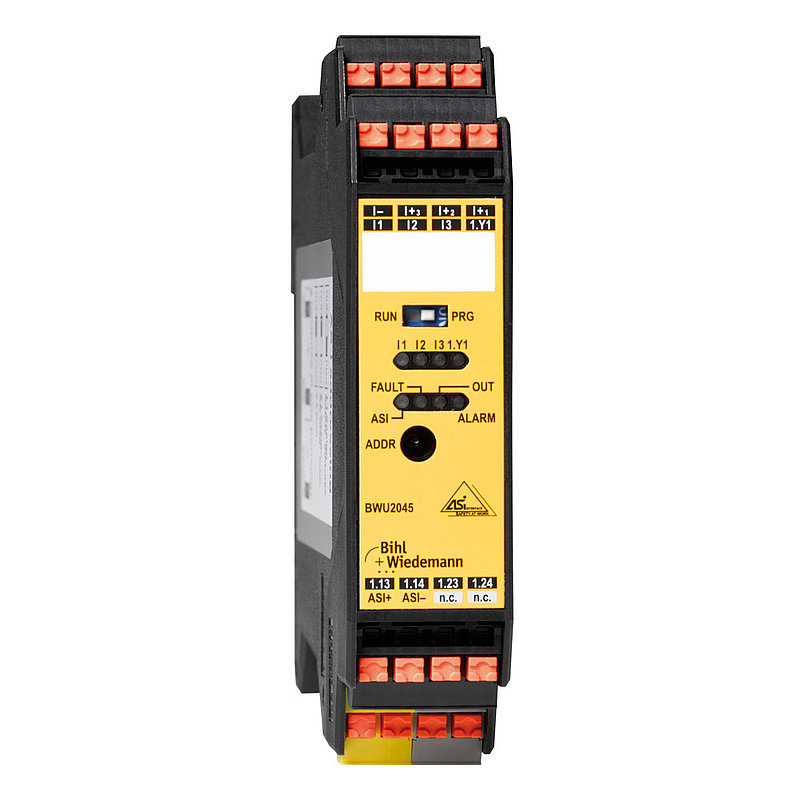

Bihl+Wiedemann BW2045 ASi Safety Output Module, IP20, 1SRO/1EDM

Popis

ASi Safety Output Module in IP20, 22,5 mm x 114 mm, with 4 x 4 contacts, 1 release circuit (2 x relay outputs), 1 EDM, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, periphery connection via Push-in terminals, length of connector cable max. 15 m for inputs and unlimited for outputs, ASi connection via Push-in terminals, 1 single address + 1 AB address
