Bihl+Wiedemann BW2914 Leiterplattenmodule AS-i, Platinenlösungen

Popis

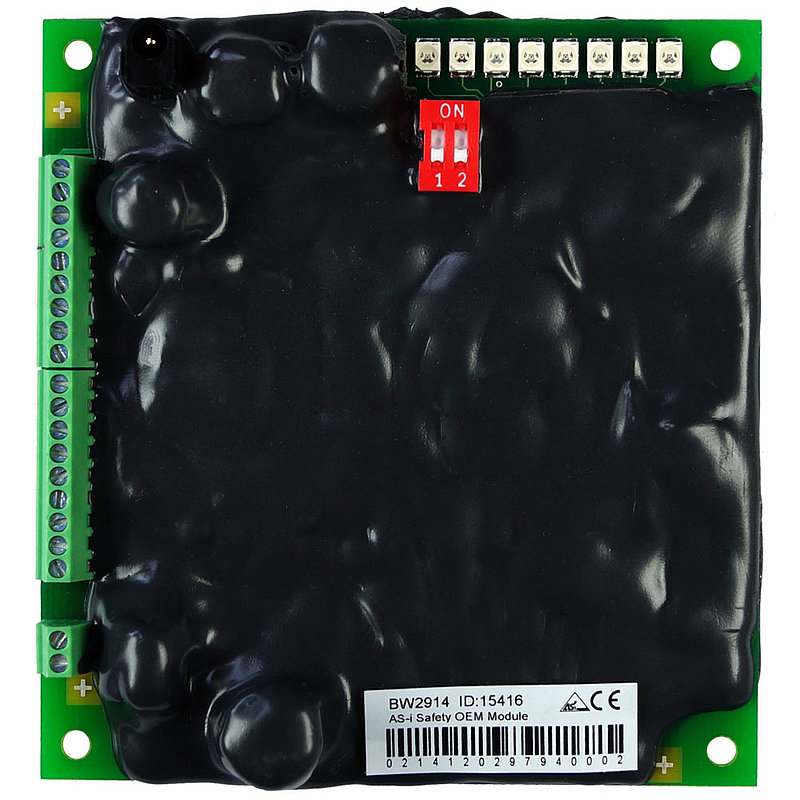

ASi Safety PCB Module, 85 mm x 80 mm, 1 release circuit (1 x electronic safe output), 2 digital inputs, 2 digital outputs, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, max. 100 mA for sensor supply, max. 100 mA per output (standard), periphery connection via screw terminals, thick coated, LED, ASi connection via screw terminals, 1 single address + 2 AB address
