Bihl+Wiedemann BW3067 Leiterplattenmodule AS-i, Platinenlösungen

Popis

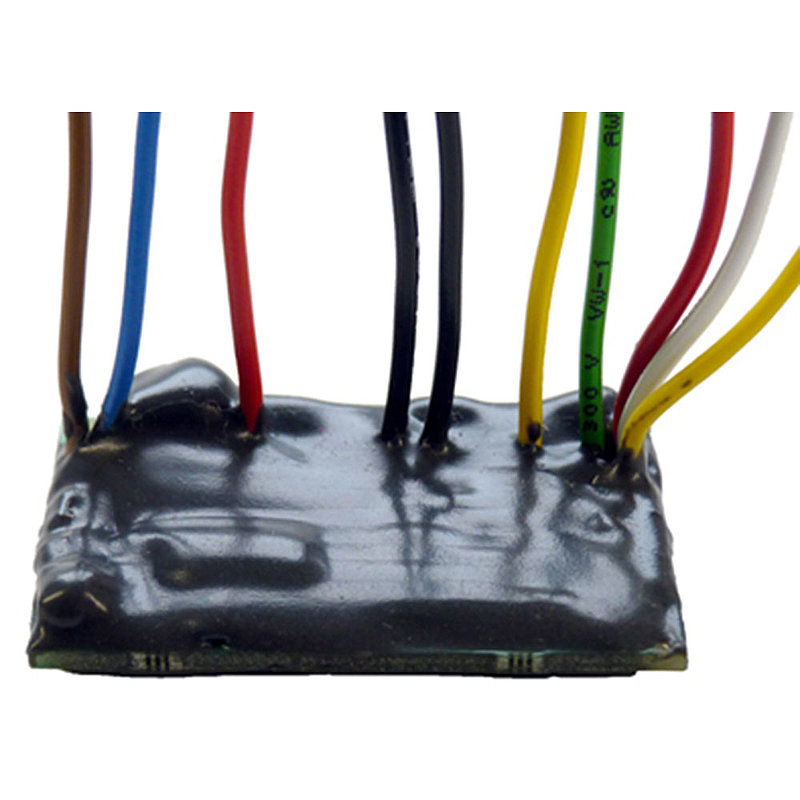

ASi Safety PCB Module, 43 mm x 30 mm, 1 x 2 channels safe input (SIL 3, cat. 4) for floating contacts, 2 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 20 mA per output, periphery connection via connecting wires (200 mm), thick coated, LED, ASi connection via connecting wires (200 mm), 1 single address
