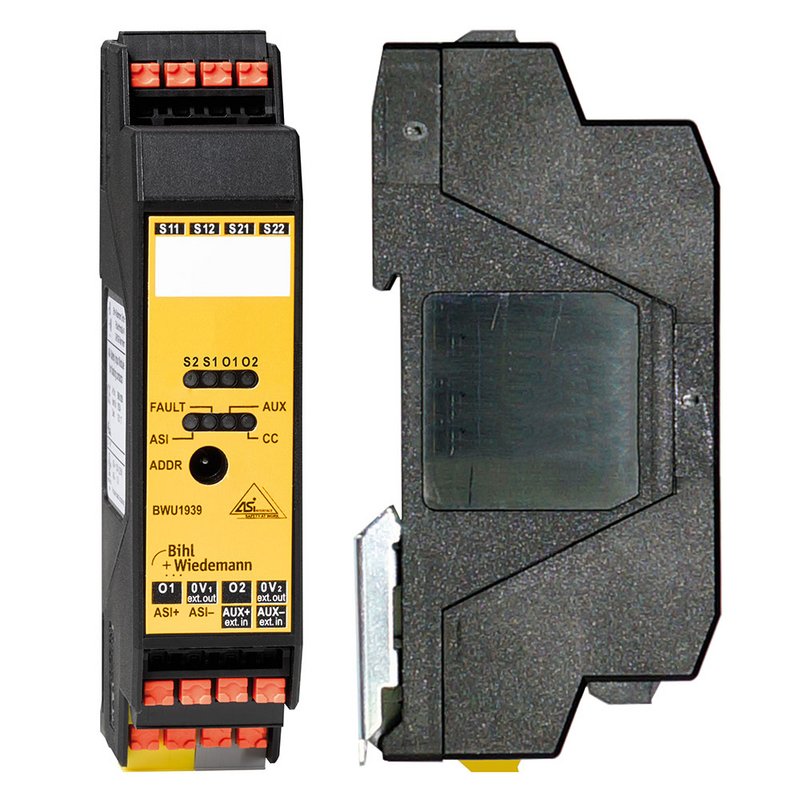

Bihl+Wiedemann BWU1939 AS-i Safety Eingangsmodule, IP20

Popis

ASi Safety Input Module in IP20, 22,5 mm x 50 mm, with 3 x 4 contacts, 1 x 2 channels safe input (SIL 3, cat. 4) for floating contacts, 2 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of AUX, periphery connection via Push-in terminals, length of connector cable max. 15 m for inputs and outputs, ASi connection via Push-in terminals, 1 single address
