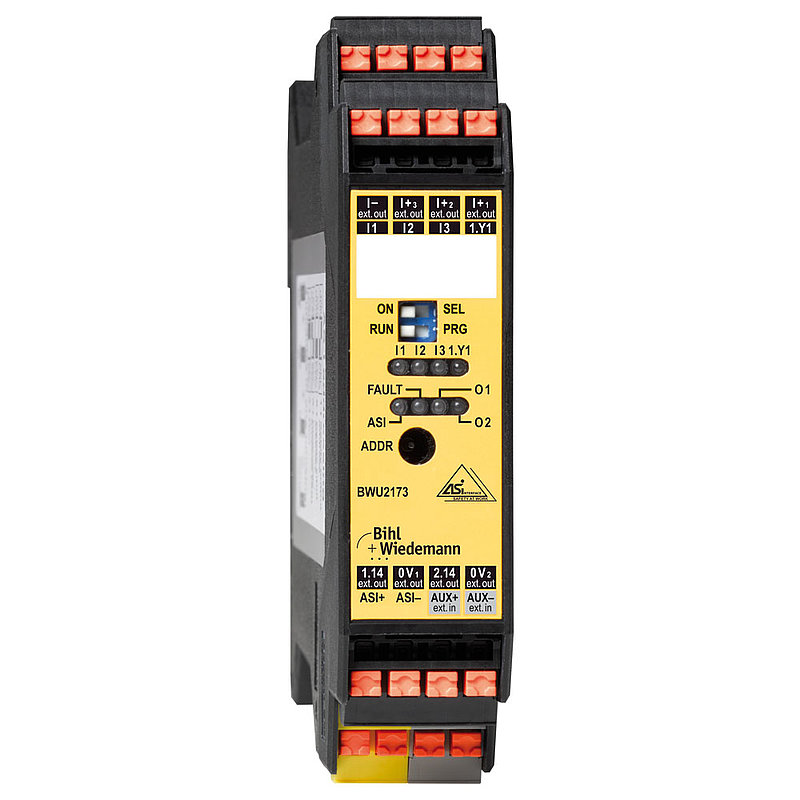

Bihl+Wiedemann BWU2173 AS-i Safety Ausgangsmodul

Popis

ASi Safety Output Module in IP20, 22,5 mm x 114 mm, with 4 x 4 contacts, 1 release circuit (2 x electronic safe outputs), 3 digital inputs and 1 EDM, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, periphery connection via Push-in terminals, without limitation of connector cable length (loop resistance 150 Ohm), ASi connection via Push-in terminals, 1 single address + 2 AB addresses
