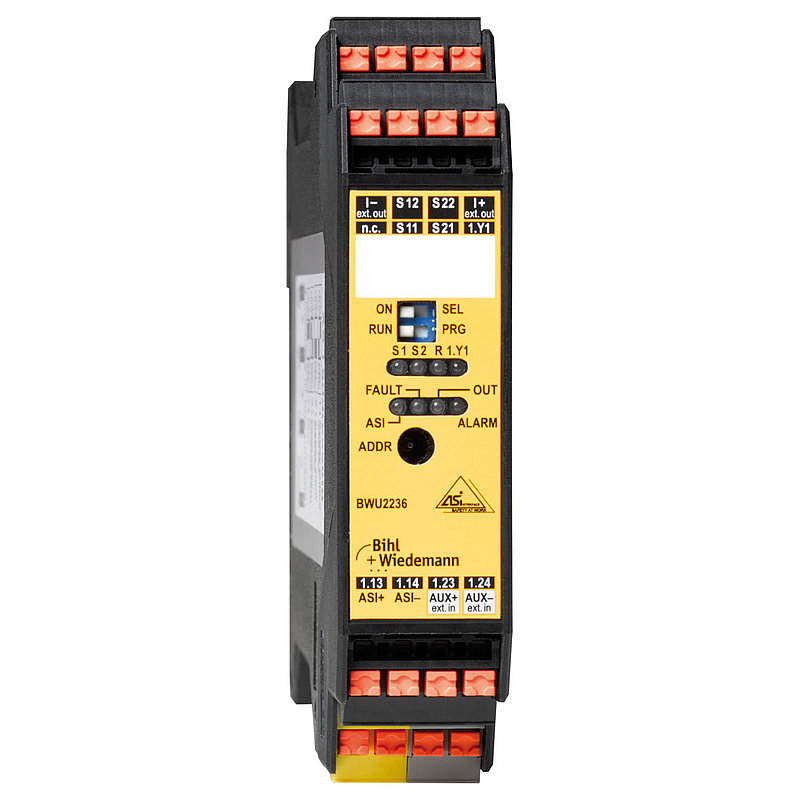

Bihl+Wiedemann BWU2236 AS-i Safety Relaisausgangsmodul

Popis

ASi Safety I/O Module in IP20, 22,5 mm x 114 mm, with 4 x COMBICON connections, 1 x 2 channels safe input (SIL 3, cat. 4) for floating contacts, 1 release circuit (2 x relay outputs), 1 EDM, input voltage/sensor supply out of AUX, output voltage/actuator supply out of ASi, periphery connection via clamps, without limitation of connector cable length (loop resistance 150?), ASi connection via clamps, 2 single slaves + 1 AB slave
