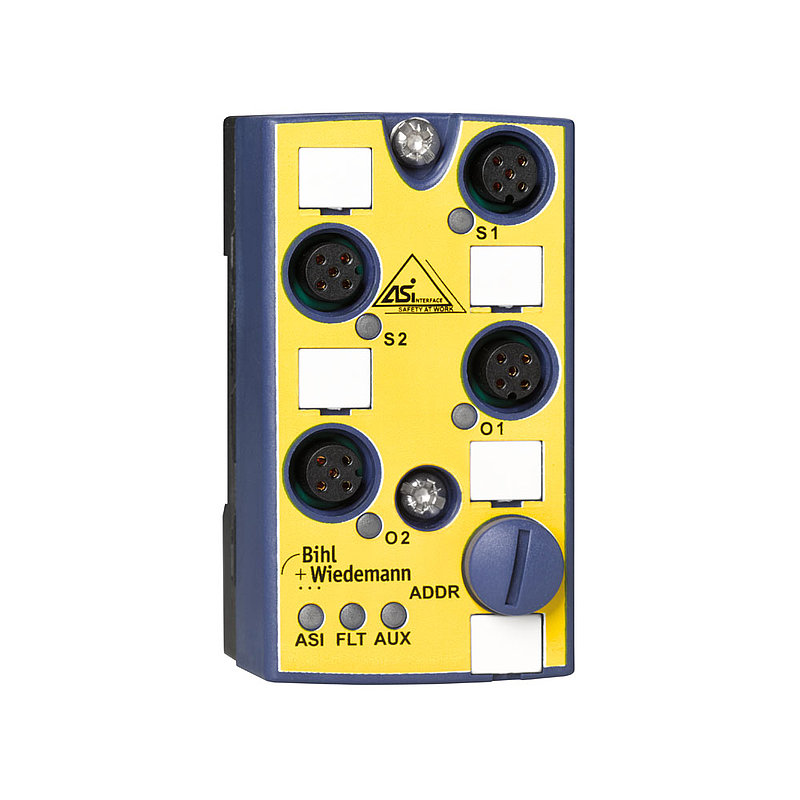

Bihl+Wiedemann BWU2284 AS-i Safety Eingangsmodul (M12), IP67

Popis

ASi Safety Input Module in IP67, with 4 x M12 sockets, 1 x 2 channels safe input (SIL 3, cat. 4) for floating contacts, 2 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of AUX, periphery connection via 4 x M12 sockets, 5 poles, length of connector cable max. 15 m for inputs and outputs, ASi connection via profile cable and piercing technology, 1 single address
