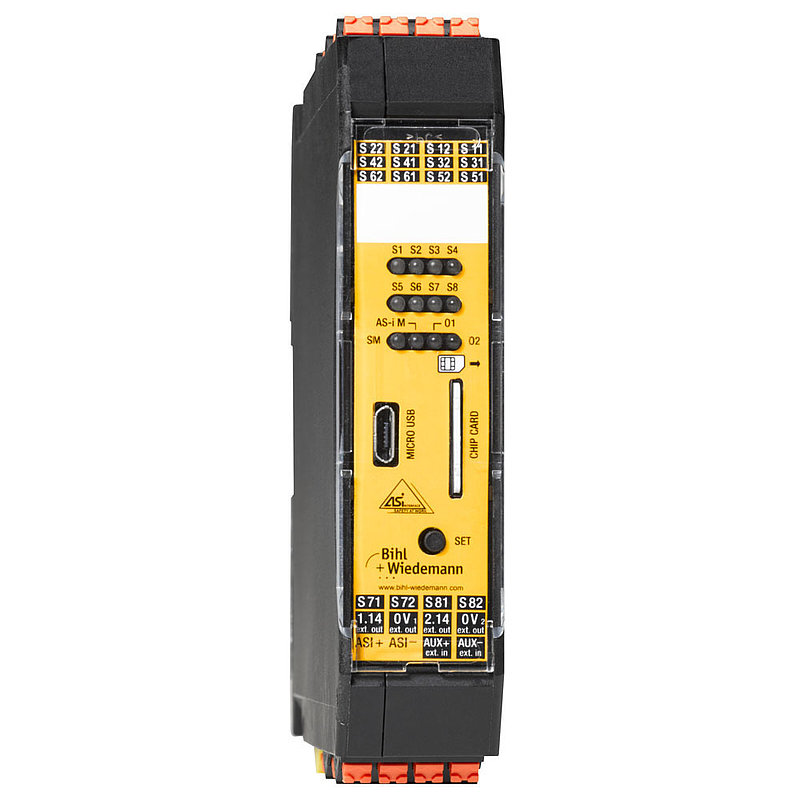

Bihl+Wiedemann BWU2569 Safety Basis Monitor

Popis

Safety Basic Monitor with extended features, 1 ASi master, 1 power supply for 2 ASi networks, 8 digital inputs or 4 x 2 channels safe inputs (SIL 3, cat. 4), inputs 3+4 optional for stand still monitors, expandable to max. 31 x 2 channels safe inputs, 2 release circuits (2 x electronic safe outputs), expandable to max. 16 safe outputs, diagnostic and configuration via micro USB interface, IP20
