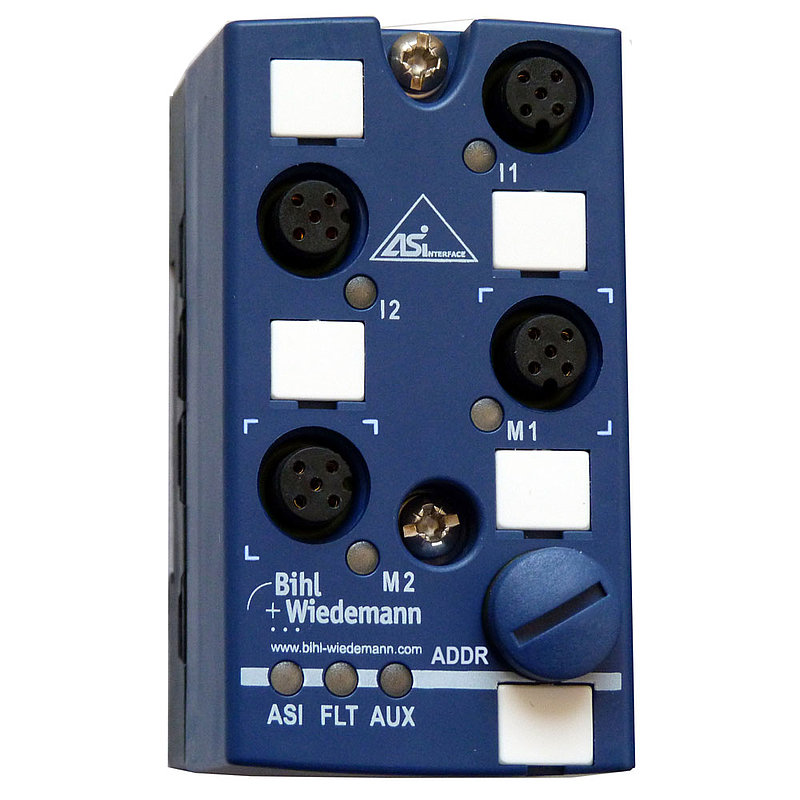

Bihl+Wiedemann BWU2575 AS-i 3.0 Motormodule für 2 Roller Drives

Popis

ASi Motor Module in IP67, with 4 x M12 sockets for 2 x 24 V motorized rollers Interroll (EC310), Itoh Denki (PM500XC/XK) or RULMECA (RDR BL-2), 4 digital inputs, motor control supply via AUX, input voltage/sensor supply out of ASi, periphery connection via 4 x M12 sockets, 5 poles, ASi connection via profile cable and piercing technology, 1 AB address. Speed setting via ASi parameters. The motor module is designed to supply the 24 V directly to the motor. At high currents or surges as they occur for example at braking, the module will not be damaged. The cable protection should be realized outside the motor module with additional measures. The substructure module is not included in the scope of delivery.
