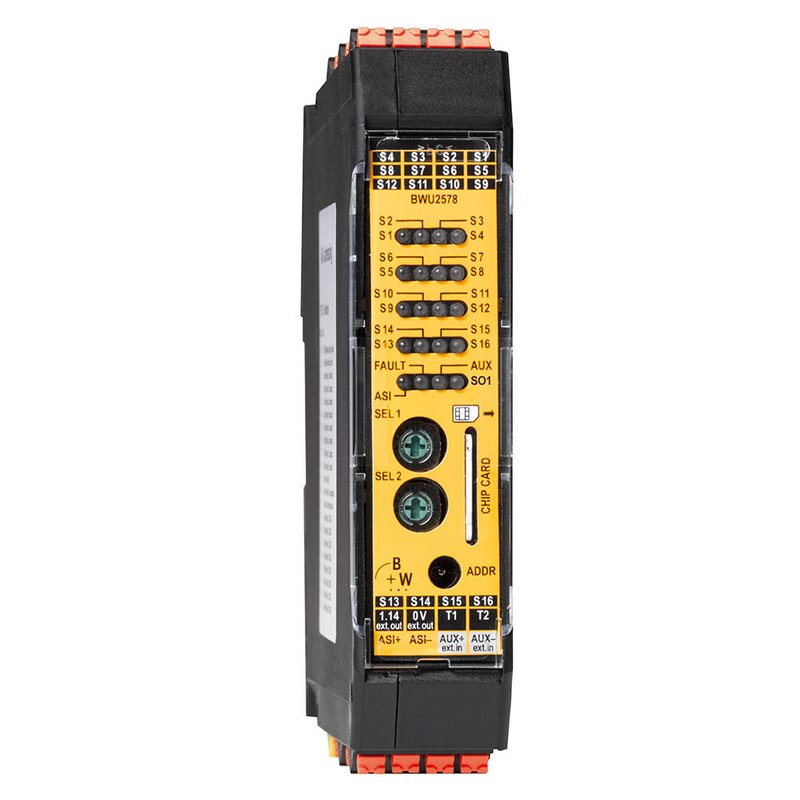

Bihl+Wiedemann BWU2578 AS-i Safety 8E/1A-Modul

Popis

ASi Safety I/O Module in IP20, 22,5 mm x 114 mm, with 6 x 4 contacts, up to 8 x 2 channels safe inputs (SIL 3, cat. 4) for floating contacts or OSSDs, complementary switch, complementary OSSDs, up to 16 standard inputs, up to 1 release circuit (1 x electronic safe output) augmented reliability, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, periphery connection via clamps, without limitation of connector cable length (loop resistance 150?), ASi connection via clamps, ASi addresses depending on configuration
