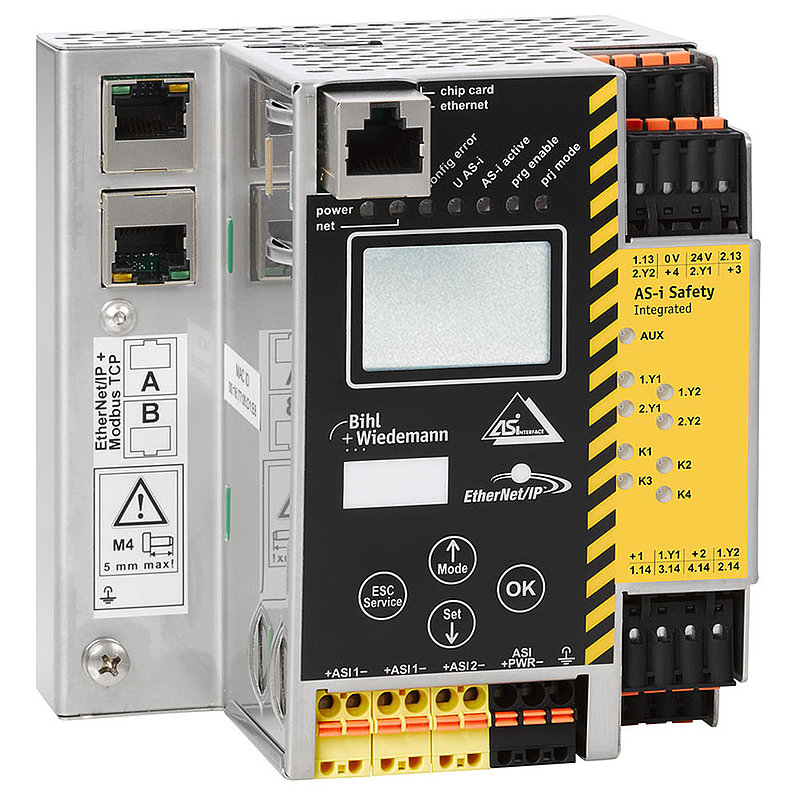

Bihl+Wiedemann BWU2579 AS-i 3.0 EtherNet/IP + Modbus TCP-Gateways mit

Popis

ASi-3 EtherNet/IP + ModbusTCP Gateway with integrated Safety Monitor, 2 ASi masters, 1 power supply for 2 ASi networks, 4 digital inputs, expandable to max. 62 x 2 channels safe inputs, 1922 x 2 channels safe inputs in max. configuration, 4 release circuits (2 x relay outputs and 2 x electronic safe outputs), expandable to max. 32 safe outputs, 992 safe outputs in max. configuration, Safe Link, diagnostic and configuration via Ethernet/IP + Modbus TCP or Ethernet diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20
