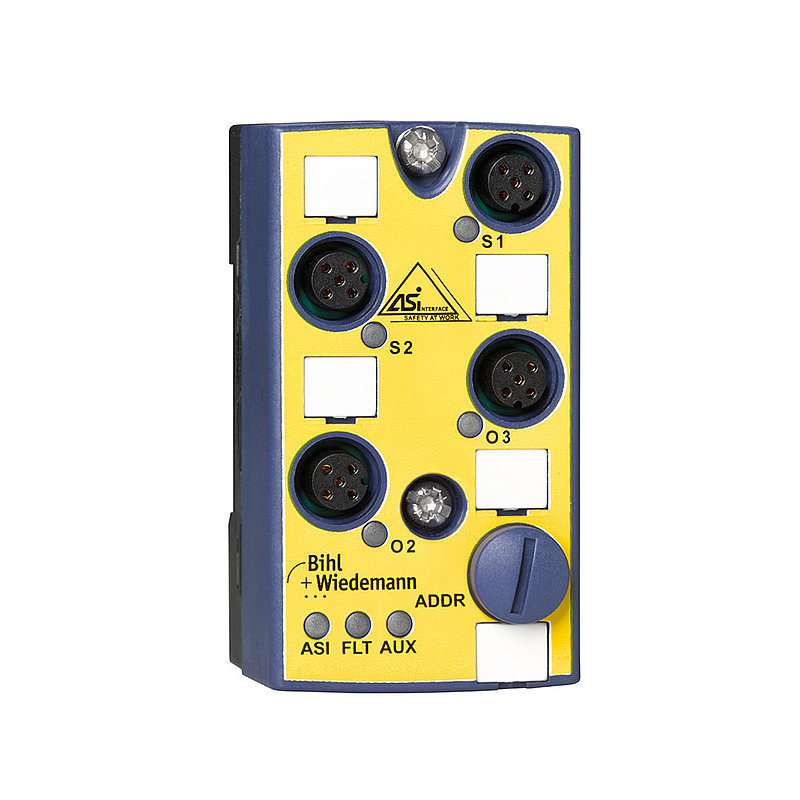

Bihl+Wiedemann BWU2689 AS-i Safety Eingangsmodul (M12), IP67

Popis

ASi Safety Input Module in IP67, with 4 x M12 sockets, 1 x 2 channels safe input (SIL 3, cat. 4) for OSSDs, 2 digital outputs, reset output for OSSDs, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, periphery connection via 4 x M12 sockets, 5 poles, without limitation of connector cable length (loop resistance 150 Ohm), ASi connection via profile cable and piercing technology, 1 single address
