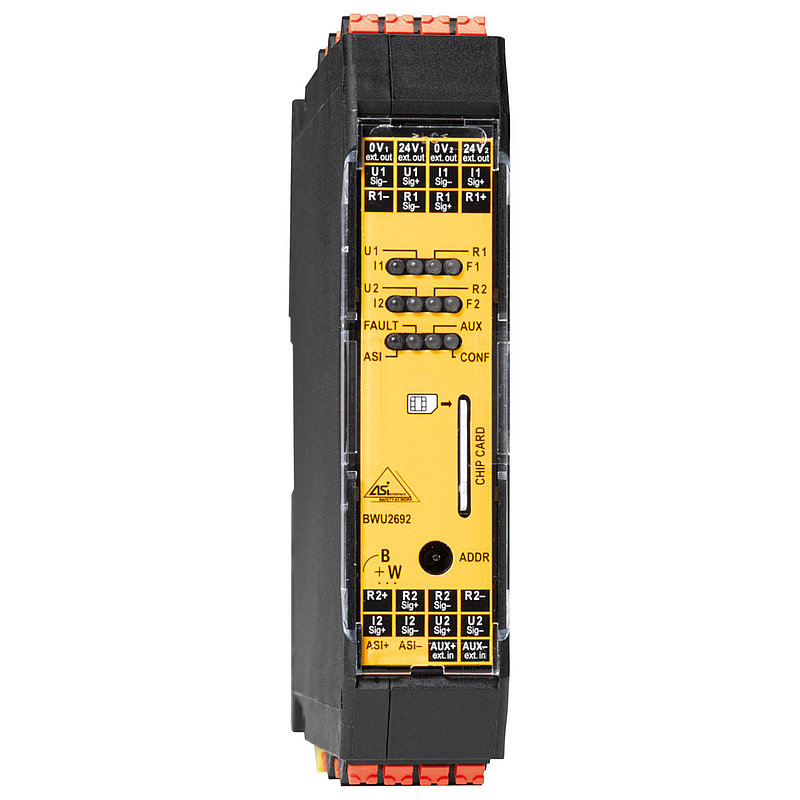

Bihl+Wiedemann BWU2692 AS-i Safety Analogeingangsmodul, IP20

Popis

ASi Safety Analog Input Module in IP20, 22,5 mm x 114 mm, with 6 x 4 contacts, 1 x 2 channels safe input (SIL 3, cat. 4) for analog values 4 ... 20 mA/0 ... 10 V/Pt100, input voltage/sensor supply out of AUX, periphery connection via Push-in terminals, without limitation of connector cable length (loop resistance 150 Ohm), ASi connection via Push-in terminals, ASi addresses depending on configuration
