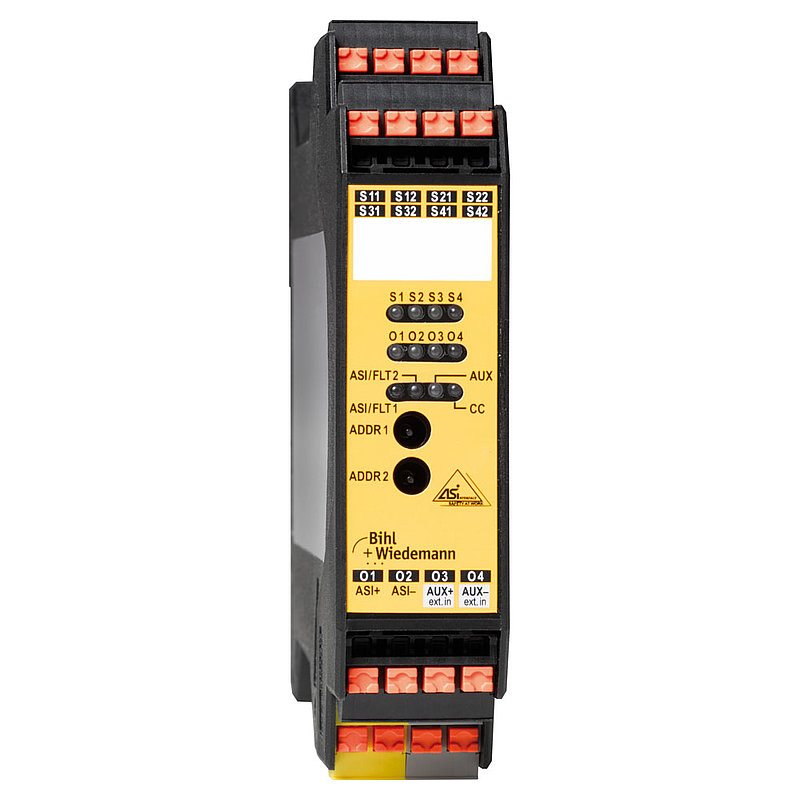

Bihl+Wiedemann BWU2707 AS-i Safety Eingangsmodule, IP20

Popis

ASi Safety Input Module in IP20, 22,5 mm x 114 mm, with 4 x 4 contacts, 2 x 2 channels safe inputs (SIL 3, cat. 4) for floating contacts, 4 digital outputs, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, periphery connection via Push-in terminals, without limitation of connector cable length (loop resistance 150 Ohm), ASi connection via Push-in terminals, 2 single addresses
