Bihl+Wiedemann BWU2742 AS-i 3.0 EtherNet/IP + Modbus TCP-Gateways mit

Popis

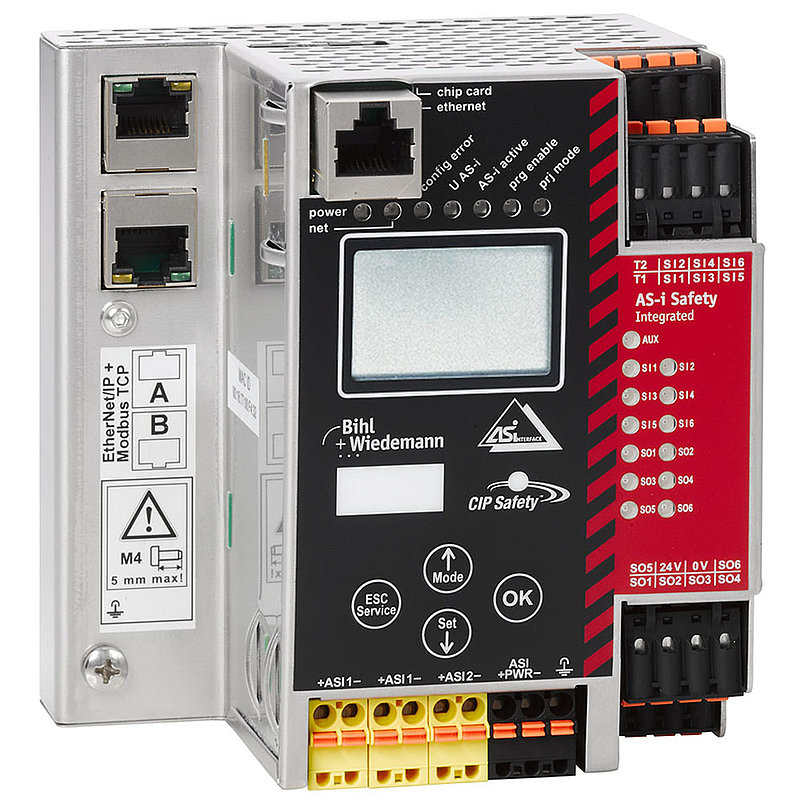

ASi-3 CIP Safety over EtherNet/IP + ModbusTCP Gateway with integrated Safety Monitor, 2 ASi masters, 1 power supply for 2 ASi networks, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4), expandable to max. 62 x 2 channels safe inputs, 6 release circuits (6 x electronic safe outputs), expandable to max. 64 safe outputs, CIP Safety via EtherNet/IP, diagnostic and configuration via Ethernet/IP + Modbus TCP or Ethernet diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20
