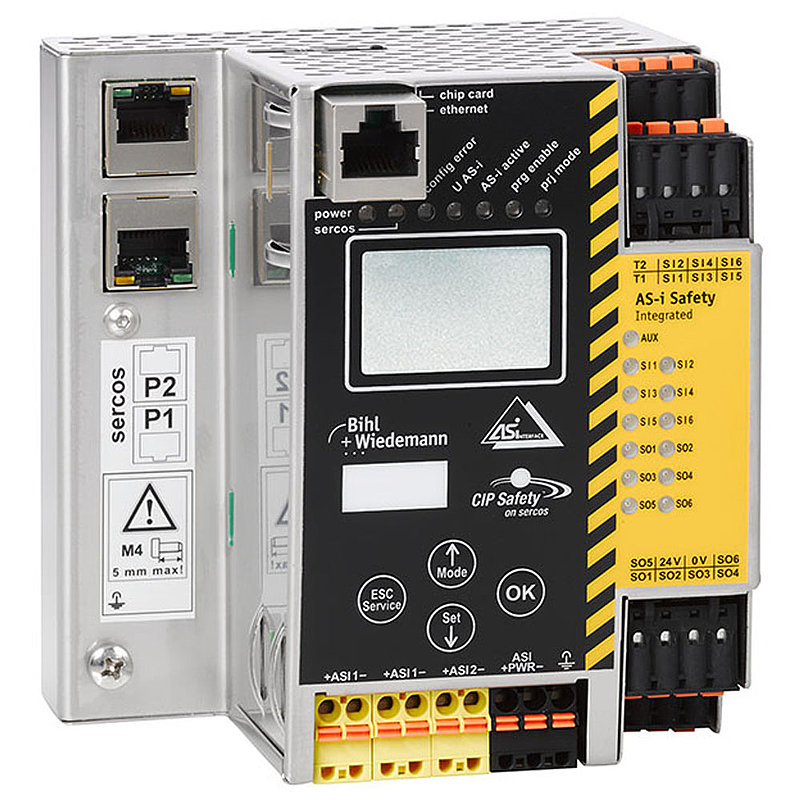

Bihl+Wiedemann BWU2758 AS-i 3.0 sercos-Gateways mit integriertem Siche

Popis

ASi-3 CIP Safety over Sercos Gateway with integrated Safety Monitor, 2 ASi masters, 1 power supply for 2 ASi networks, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4), expandable to max. 62 x 2 channels safe inputs, 6 release circuits (6 x electronic safe outputs), expandable to max. 64 safe outputs, CIP Safety via Sercos, diagnostic and configuration via Ethernet diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20
