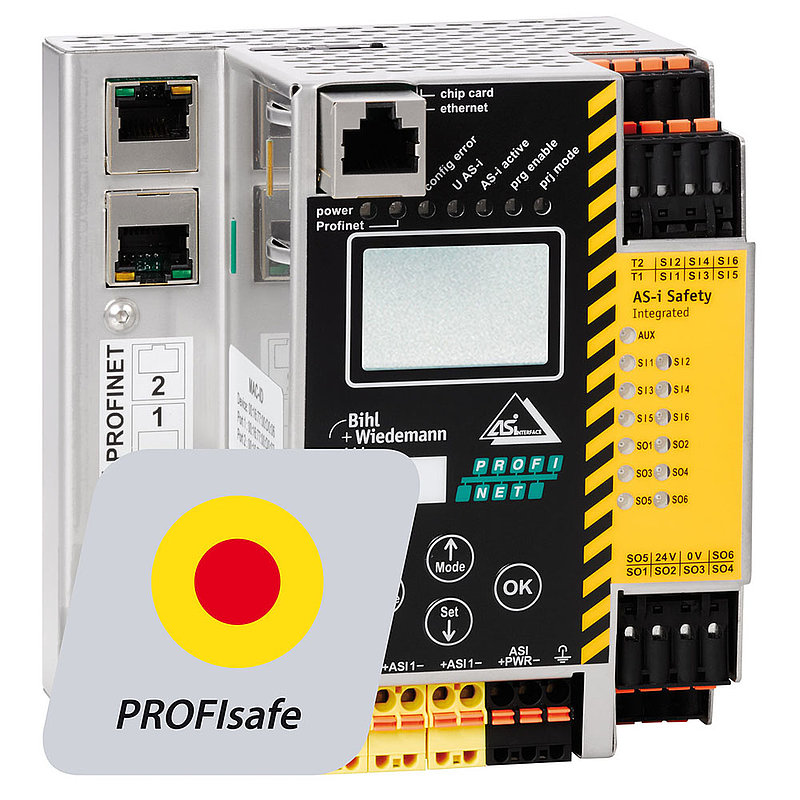

Bihl+Wiedemann BWU2794 AS-i 3.0 Gateways, PROFIsafe über PROFINET

Popis

ASi-3 PROFIsafe via PROFINET Gateway with integrated Safety Monitor, 1 ASi master, 1 power supply for 2 ASi networks, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4), expandable to max. 31 x 2 channels safe inputs, 6 release circuits (6 x electronic safe outputs), expandable to max. 31 safe outputs, PROFIsafe (F-CPU), diagnostic and configuration via PROFINET or Ethernet diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20
