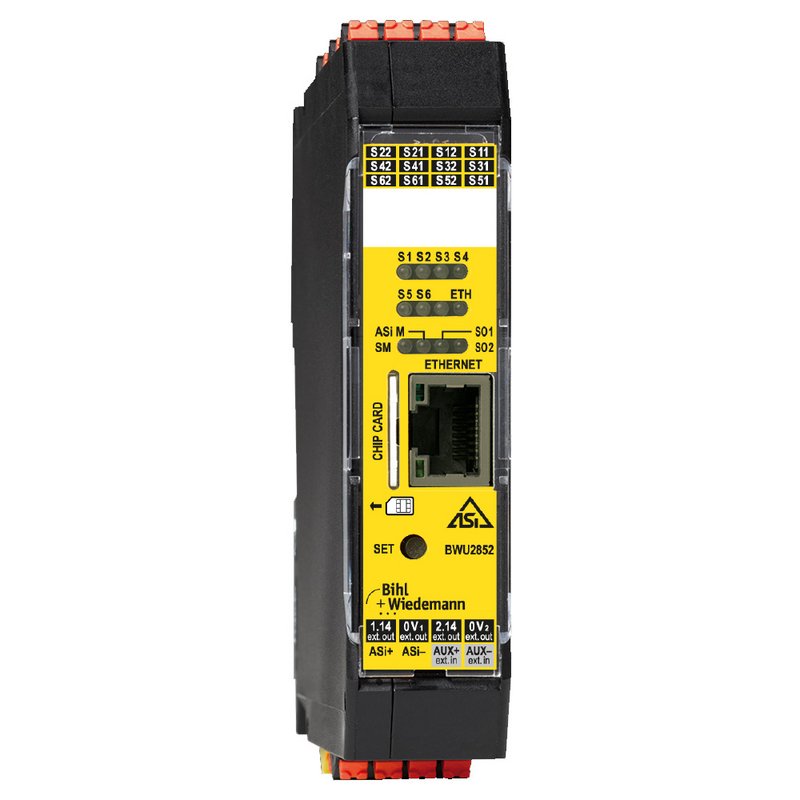

Bihl+Wiedemann BWU2852 Safety Basis Monitor

Popis

Safety Basic Monitor with extended features, 1 ASi-3 master, integrated decoupling, max. 0,5 A/ASi network, max. 8 A with ASi power supply, ASi current measurement, 22.5 mm x 99 mm x 114 mm, with 6 x 4 contacts, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4), input 3 optional for speed monitors (up to 4kHz), expandable to max. 31 x 2 channels safe inputs, 1891 x 2 channels safe inputs in max. configuration, 2 release circuits (2 x electronic safe outputs), expandable to max. 32 safe outputs, 991 safe outputs in max. configuration, Safe Link, diagnostic and configuration via Ethernet diagnostic interface, periphery connection via push-in terminals, ASi/AUX connection via push-in terminals, IP20 Safety compact controller with safety inputs and outputs. Safety standstill/speed monitor for up to 3 axes. Ethernet interface.
