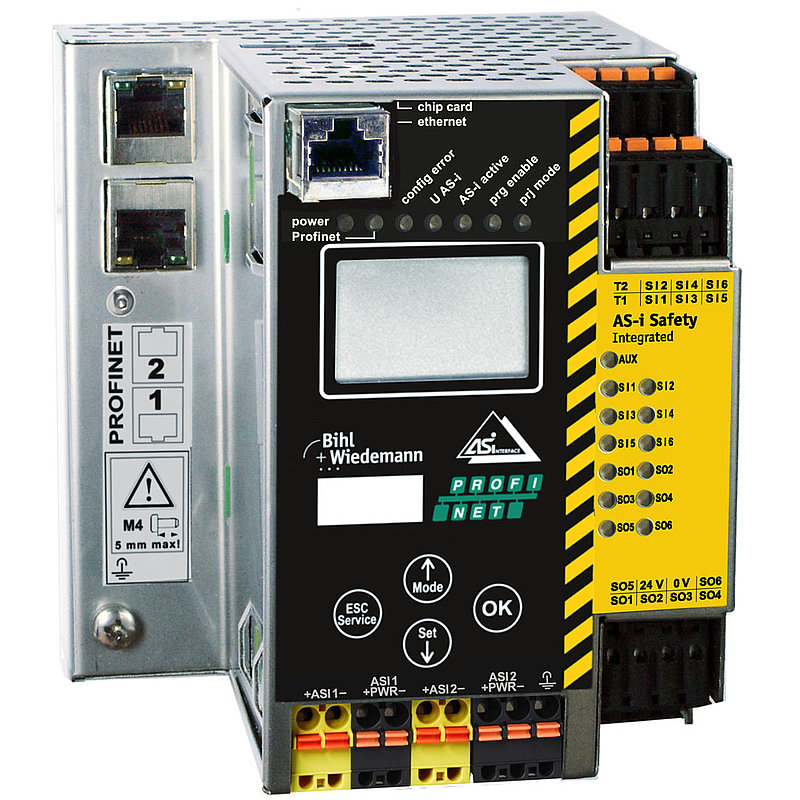

Bihl+Wiedemann BWU3080 AS-i 3.0 PROFINET-Gateway mit integriertem Sich

Popis

ASi-3 PROFINET Gateway with integrated Safety Monitor, 2 ASi masters, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4), expandable to max. 62 x 2 channels safe inputs, 1922 x 2 channels safe inputs in max. configuration, 6 release circuits (6 x electronic safe outputs), expandable to max. 32 safe outputs, 992 safe outputs in max. configuration, Safe Link, diagnostic and configuration via PROFINET or Ethernet diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20
