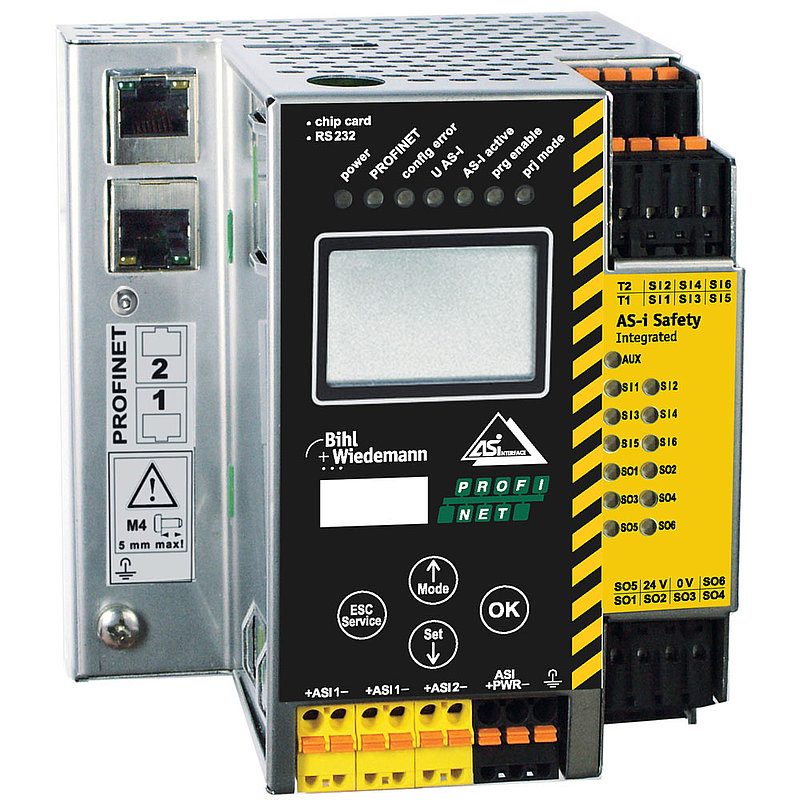

Bihl+Wiedemann BWU3274 ASi-3 PROFINET Gateway with integrated Safety Monitor, 2 ASi masters

Popis

ASi-3 PROFINET Gateway with integrated Safety Monitor, 2 ASi masters, 1 power supply for 2 ASi networks, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4), expandable to max. 62 x 2 channels safe inputs, 1922 x 2 channels safe inputs in max. configuration, 6 release circuits (6 x electronic safe outputs), expandable to max. 32 safe outputs, 992 safe outputs in max. configuration, Safe Link, diagnostic and configuration via PROFINET or RS232 diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20
