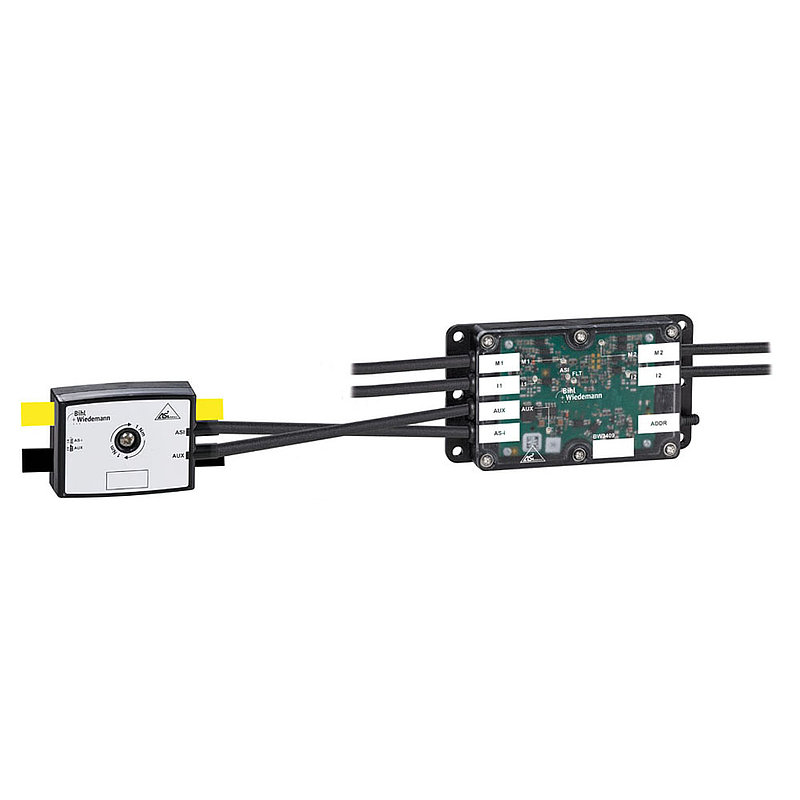

Bihl+Wiedemann BWU3409 Cable Duct ASi Motor Module, IP54, M8, M12 for 24V motorized rollers, 4I/2O/2

Popis

Cable Duct ASi Motor Module in IP54, with 2 x M8 cable sockets and 2 x M12 cable sockets for 2 x 24 V motorized rollers Interroll (EC310, EC5000 AI), Itoh Denki (PM500XC/XK, PM605XC/XK) or RULMECA (RDR BL-2), 4 digital inputs, 2 digital outputs, 2 analog outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of AUX, internal line protection, separately for each motor 4,5 A (slow-blow fuse), flat design, installation in cable duct possible (installation depth ? 19 mm), periphery connection via 2 x M8 snap-in cable sockets, straight, 5 poles (motors) and 2 x M12 cable sockets, straight, 5 poles (sensors), cable length of motor connections 0,60 m, cable length of input connections 1,0 m, ASi connection via profile cable and piercing technology, 1 AB address
