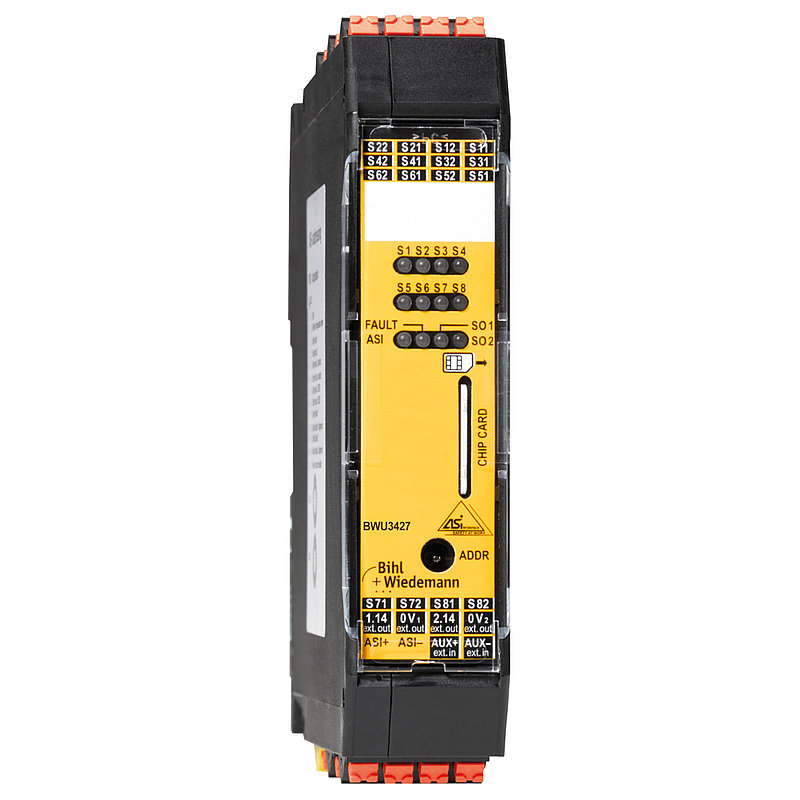

Bihl+Wiedemann BWU3427 ASi Safety I/O Module, IP20, 4SI/2SO

Popis

ASi Safety I/O Module in IP20, 22,5 mm x 114 mm, with 6 x 4 contacts, up to 4 x 2 channels safe inputs (SIL 3, cat. 4) for floating contacts or OSSDs, complementary switch, complementary OSSDs, up to 8 standard inputs, up to 2 release circuits (2 x electronic safe outputs) augmented reliability, up to 8 standard outputs, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, periphery connection via Push-in terminals, without limitation of connector cable length (loop resistance 150?), ASi connection via Push-in terminals, ASi addresses depending on configuration, optimised for ASIMON360
