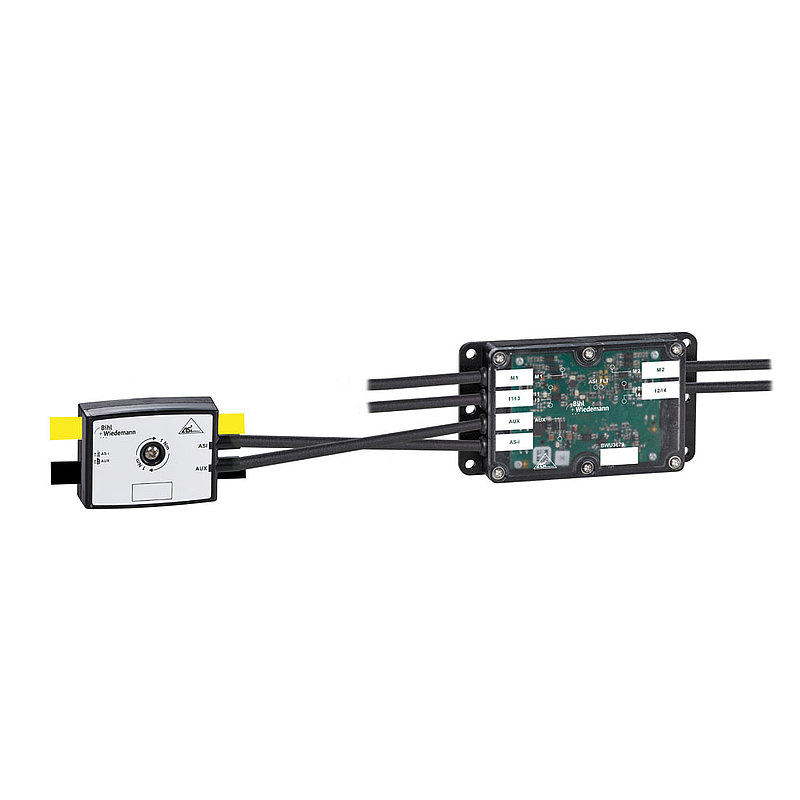

Bihl+Wiedemann BWU3679 Cable Duct ASi Motor Module, IP54, M8 and M12 for 24V motorized rollers, 4I/4

Popis

Cable Duct ASi Motor Module in IP54, with 2 x M8 cable sockets and 2 x M12 cable sockets for 2 x 24 V motorized rollers Itoh Denki (PM500ME/XE/XP, PM605ME/XE/XP), 4 digital inputs, 4 digital outputs, 2 analog outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of AUX, internal line protection, separately for each motor 3,5 A (slow-blow fuse), flat design, installation in cable duct possible (installation depth ? 19 mm), periphery connection via 2 x M8 cable sockets, straight, 5 poles and 2 x M12 cable sockets, straight, 5 poles, cable length of motor connections 0,40 m, cable length of input connections 0,06 m, ASi connection via profile cable and piercing technology, 1 AB slave ASi-5 náhrada -> BWU4739 ASi-3 náhrada -> BWU4769
