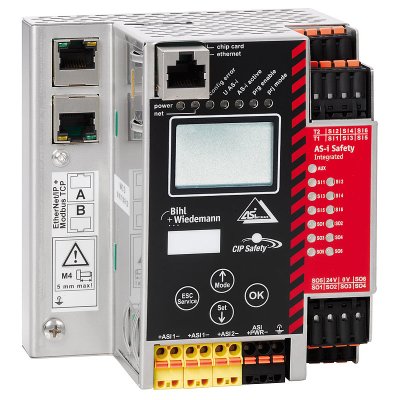

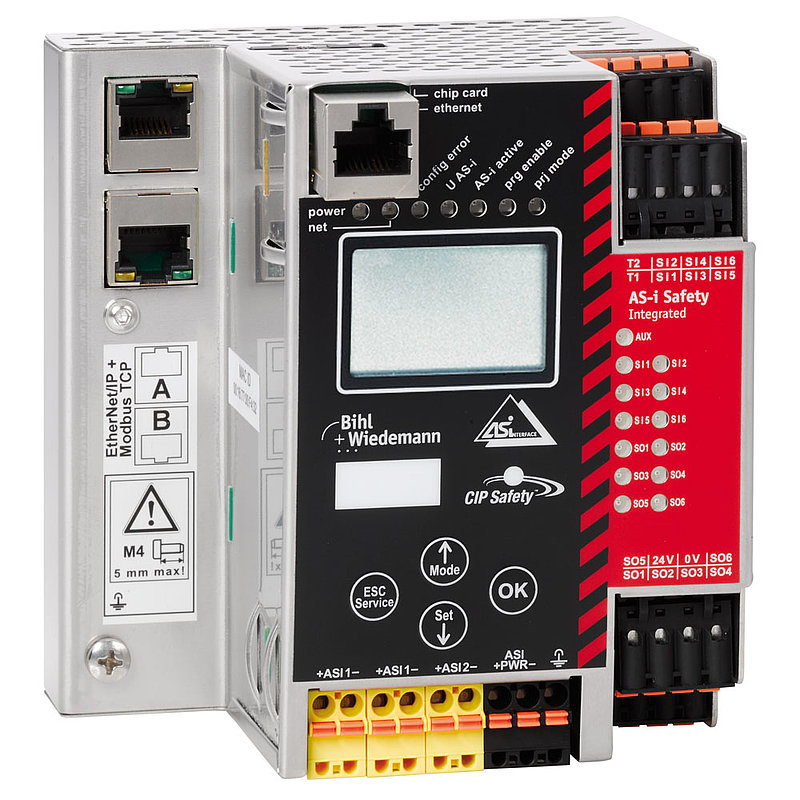

Bihl+Wiedemann BWU3683 ASi-3 CIP Safety™ over EtherNet/IP™ + ModbusTCP Gateway with integrated Safet

Popis

ASi-3 CIP Safety™ over EtherNet/IP™ + ModbusTCP Gateway with integrated Safety Monitor, 2 ASi masters, OPC UA server, REST API, integrated decoupling, max. 4 A per ASi circuit, ASi current measurement in the gateway, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4), expandable to max. 62 x 2 channels safe inputs, 1922 x 2 channels safe inputs in max. configuration, 6 release circuits (6 x fast electronic safe outputs), expandable to max. 64 safe outputs, 1984 safe outputs in max. configuration, CIP Safety via EtherNet/IP and Safe Link, diagnostic and configuration via Ethernet/IP + Modbus TCP or Ethernet diagnostic interface, OPC UA communication via Ethernet fieldbus interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20
