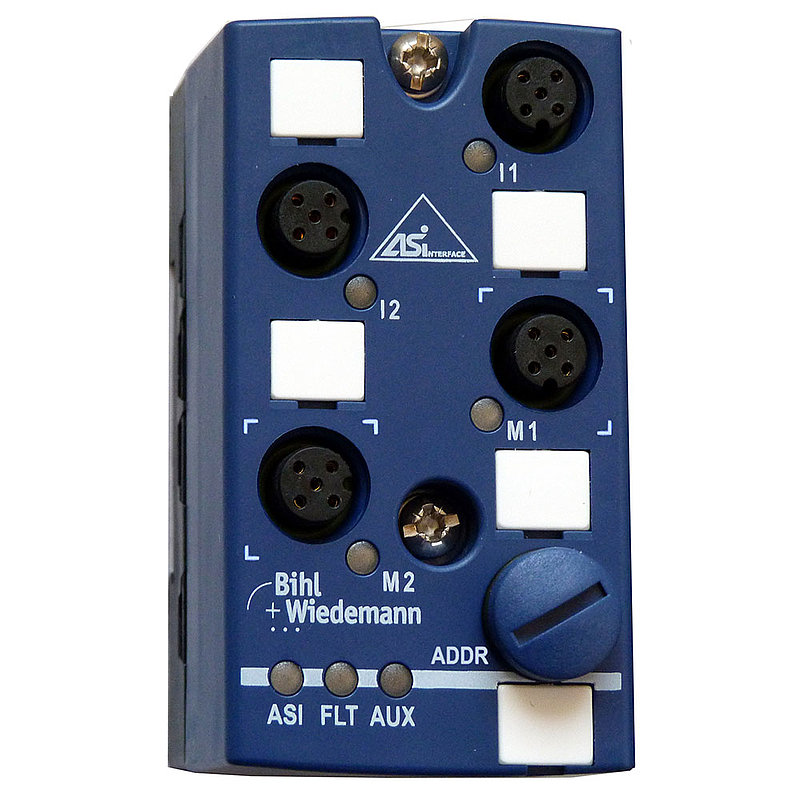

Bihl+Wiedemann BWU4205 ASi Motor Module, IP67, M12 for 24 V motorized rollers, 2M/2I

Popis

ASi Motor Module in IP67, with 4 x M12 sockets for 2 x 24 V motorized rollers Interroll e.g. Interroll (EC5000 AI, 24 V, 20 W/35 W), Itoh Denki (PM500XC/XK), Rulmeca (RDR BL-3), 4 digital inputs, motor control supply via AUX, input voltage/sensor supply out of ASi, internal line protection, separately for each motor 4,5 A (slow-blow fuse), periphery connection via 4 x M12 sockets, 5 poles, ASi connection via profile cable and piercing technology, 1 AB address The substructure module is not included in the scope of delivery.
