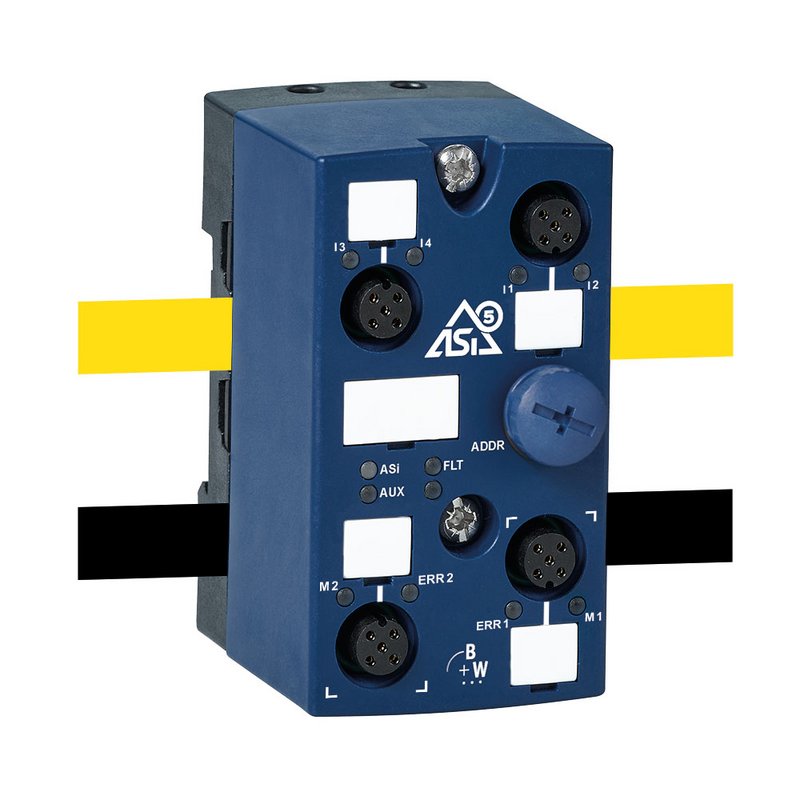

Bihl+Wiedemann BWU4246 ASi-5 Motor Module, IP67, M12 for 24 V motorized rollers, 2M/4I

Popis

ASi-5 Motor Module in IP67, with 4 x M12 sockets for 2 x 24 V motorized rollers Interroll (EC5000, 24 V, 20 W/35 W), 4 digital inputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of AUX, internal line protection, separately for each motor 5 A (slow-blow fuse), periphery connection via 4 x M12 sockets, 5 poles, ASi connection via profile cable and piercing technology, 1 ASi-5 slave
